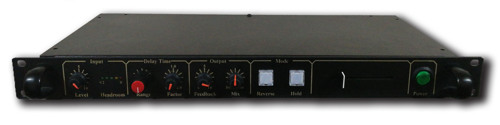

Front panel Controls
Input level control
5 LED input level display
12 delay ranges - short enough for phasing / flanging effects. Long enough for sound on sound effects / beat looping
Delay time factor 0.5x - 2x (continuously variable)
Feedback control
Dry/Wet Mix
Reverse Mode
Hold button
"Tape head" modulation Slider for additional effects
Power switch

Additional info
19" 1U Rack case
Universal SMPS - 85v-240v
96Kb 16bit sample RAM
2.75 Sec Max delay time
12 Bit SAR ADC
12 Bit DAC
Compander for lower noise

Delay Ranges

Range	Min	Max
1	0.33ms	1.34ms
2	0.66ms	2.67ms
3	1.34ms	5.357ms
4	2.67ms	10.71ms
5	5.35ms	21.42ms
6	10.71ms	42.85ms
7	21.42ms	85.71ms
8	42.85ms	171.42ms
9	85.71ms	342.85ms
10	171.42ms	0.68 secs
11	342.85ms	1.37 secs
12	0.68 secs	2.75 secs

echo - quick demo 1

echo - quick demo 2
